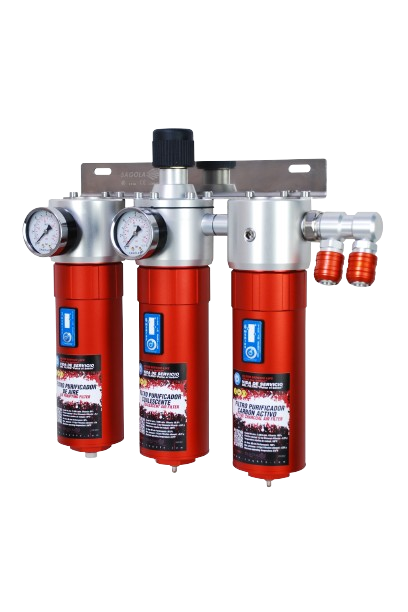

SAGOLA 5300X 3 STAGE FILTER

Introducing the SAGOLA 5300X 3-Stage Air Filter: Your Gateway to Clean, High-Quality Air!

Elevate your paintbooth air quality and protect your equipment with the Sagola 5300X 3-Stage Air Filter. Designed for precision and efficiency, this three-stage filtration system ensures the air you use for painting remains as clean and free as possible from contaminants such as oils, humidity & dirt.

Stage 1: The pre-filter removes larger particles, dust, and debris, preventing them from reaching subsequent filtration stages.

Stage 2: A high-efficiency filter removes finer particles, aerosols, and moisture, maintaining air purity and safeguarding your tools from potential damage.

Stage 3: The activated carbon filter absorbs odors, oil vapors, and remaining impurities, resulting in a final air output of exceptional quality for your painting applications.

- Weight: 14.59 Lbs

- Air flow: 101 CFM

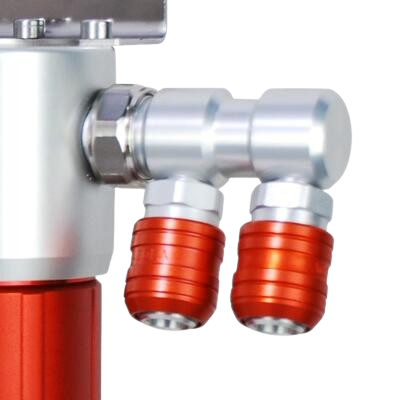

- Air outlet: BSP 1/4" Female

- Air inlet: BSP 1/2" Female

- Maximum working pressure: 174 PSI

- Maximum working temperature: 90 Deg C

- Drain system: 1 Automatic Drain + 2 Semi-Automatic Drains

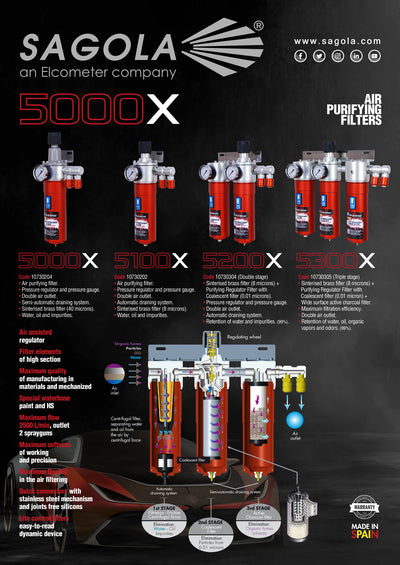

The Sagola 5300X filter offers the maximum filtration level in spray booths and painting lines where finishing is highly demanding. Three filtered stages, Sinterised brass 8 microns pre filtration is incorporated, followed by a 0.01 micron Coalescent filter and final filtration by a wide surface active charcoal filter. Ideal for waterborne painting lines (and organic vapor problems in the network). This model eliminates, in addition to water and impurities, organic fumes and foul air

Designed for professional-grade performance, this air filter enhances the lifespan of your equipment, minimizes paint defects, and guarantees a pristine finish. Easy to install and maintain, the Sagola 5300X ensures optimal air quality, empowering you to achieve immaculate results on every project.
